Carbon Ceramic IR
Ceramic-grade heat rejection with a true carbon color.
SunPro’s flagship automotive film. A ceramic IR layer over a color-stable carbon base rejects up to 89% of infrared energy (780–2500nm) while staying non-reflective and signal-friendly. It is the film to lead with when a customer asks for the best.
6 shades. One consistent color.
Shades 05, 15, 20, 35, 50 and 70. Each row shows the figures installers quote most, exactly as published.
| Shade | Visible light | IR rejection | IR (narrow band) | Total solar | UV |
|---|---|---|---|---|---|
| 05Carbon Ceramic IR 05 | 5%VLT | 89%IR · 780–2500nm | 80%IR · 900–1000nm | 64%TSER | 99%+UV |
| 15Carbon Ceramic IR 15 | 14%VLT | 84%IR · 780–2500nm | 73%IR · 900–1000nm | 59%TSER | 99%+UV |
| 20Carbon Ceramic IR 20 | 19%VLT | 84%IR · 780–2500nm | 68%IR · 900–1000nm | 56%TSER | 99%+UV |
| 35Carbon Ceramic IR 35 | 34%VLT | 81%IR · 780–2500nm | 60%IR · 900–1000nm | 50%TSER | 99%+UV |
| 50Carbon Ceramic IR 50 | 49%VLT | 78%IR · 780–2500nm | 52%IR · 900–1000nm | 44%TSER | 99%+UV |
| 70Carbon Ceramic IR 70 | 76%VLT | 71%IR · 780–2500nm | 47%IR · 900–1000nm | 39%TSER | 99%+UV |

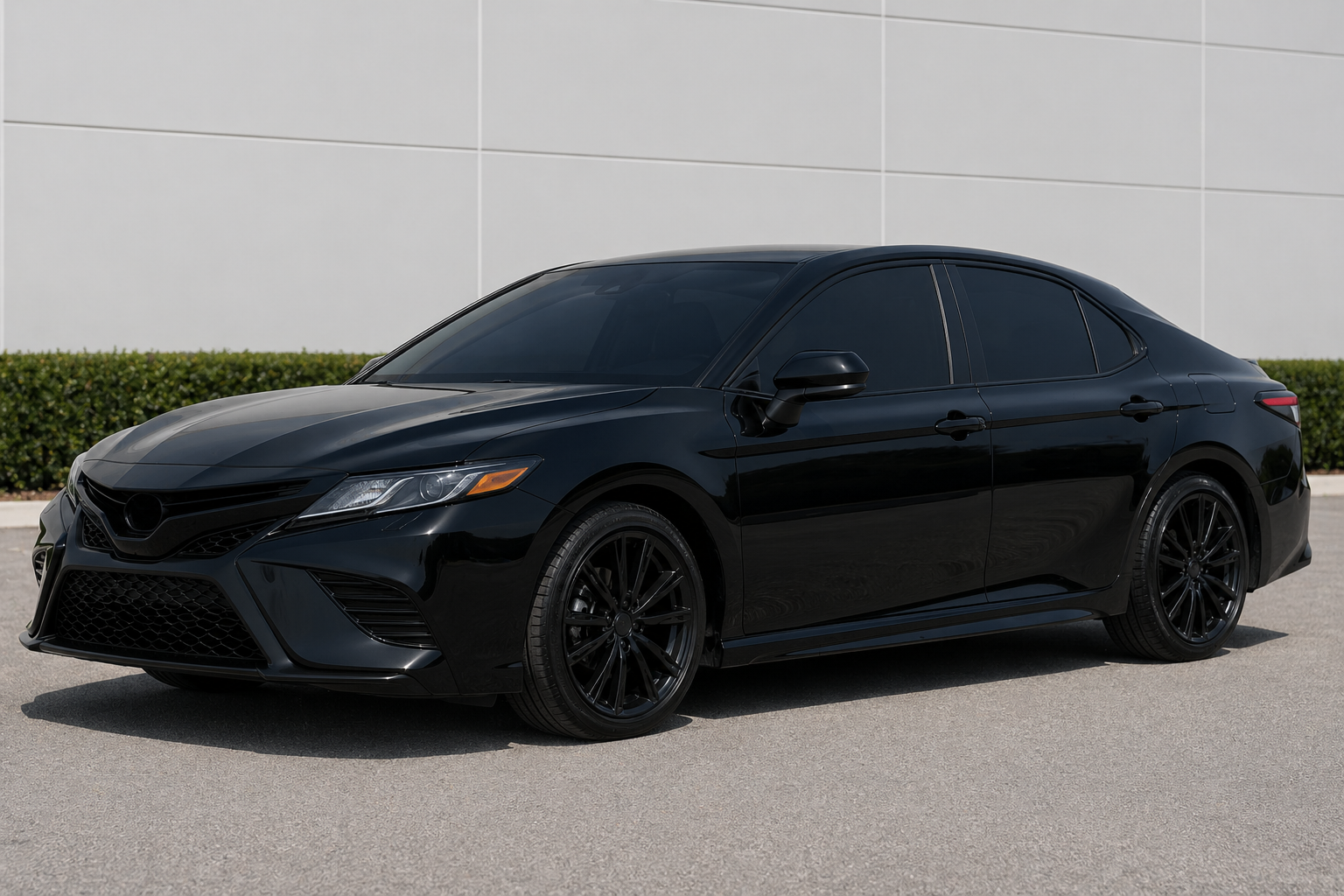

Carbon Ceramic IR, installed.
What sets it apart.
Ceramic-grade heat rejection with a true carbon color.
- Up to 89% IR rejection
Measured across the 780–2500nm infrared band — the number that reflects what a driver actually feels.
- Non-metal construction
No interference with GPS, cellular, satellite radio, or keyless entry.
- Color-stable carbon base
Deep neutral charcoal that will not fade to purple.
- Installer-friendly handling
Predictable shrink behavior and a clean release liner for efficient installs.
Backed by the SunPro warranty.
Carbon Ceramic IR is covered against fading, bubbling, peeling, cracking, and delamination when professionally installed. Terms ship with every roll; installers register the customer on the Quest One warranty form.
Carbon Ceramic IR — full specification
Exactly as published on the SunPro specification sheet. Nothing rounded, nothing estimated.
| Product | VLT % | Solar Transmission % | Solar Absorption % | Solar Reflectance % | VLR % Interior | VLR % Exterior | IR Rejection % (900–1000nm) | IR Rejection % (780–2500nm) | UV Rejection % | Shading Coefficient | SHGC | TSER % |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon Ceramic IR 05 | 5 | 12.0 | 82.8 | 5.2 | 5.9 | 5.3 | 80 | 89 | 99+ | 0.45 | 0.36 | 64 |
| Carbon Ceramic IR 15 | 14 | 18.5 | 76.6 | 4.9 | 5.8 | 5.1 | 73 | 84 | 99+ | 0.5 | 0.41 | 59 |
| Carbon Ceramic IR 20 | 19 | 23.2 | 71.8 | 5.0 | 5.9 | 5.2 | 68 | 84 | 99+ | 0.53 | 0.44 | 56 |
| Carbon Ceramic IR 35 | 34 | 32.0 | 62.6 | 5.4 | 6.2 | 5.6 | 60 | 81 | 99+ | 0.6 | 0.5 | 50 |
| Carbon Ceramic IR 50 | 49 | 43.0 | 51.1 | 5.9 | 6.9 | 6.4 | 52 | 78 | 99+ | 0.69 | 0.56 | 44 |
| Carbon Ceramic IR 70 | 76 | 50.2 | 42.3 | 7.5 | 9.2 | 9.5 | 47 | 71 | 99+ | 0.75 | 0.61 | 39 |
Source: SunPro Auto Window Film Specification — Ceramic IR. Highlighted column is IR rejection measured across 780–2500nm. UV rejection listed as 99% and up. Values are measured on 1/8″ (3mm) clear glass; actual results vary with glass type and installation.
Asked at the counter.
Is Carbon Ceramic IR reflective or mirror-like?
No. It’s a non-reflective film — exterior reflectance is 5.2–9.5% across the lineup, in line with factory glass. It looks like a clean charcoal tint, not a mirror.
Why is the 70 shade listed at 76% VLT?
That’s the measured figure on the official spec sheet for Carbon Ceramic IR 70. It’s the lightest shade in the line and still rejects 71% of IR across 780–2500nm — the pick for front glass in strict-VLT states.
How does it compare to Carbon Black at the same shade?
Same look, same carbon base. Ceramic IR adds the infrared-rejecting layer — 81% IR at the 35 shade — which is the reason to upsell when heat is the complaint.
Carbon Ceramic IR
Ceramic IR · Flagship. Max IR rejection 89% (780–2500nm), max TSER 64%, 99%+ UV on every shade.
Carbon Black
The proven carbon film. Great looks, real performance, everyday value. Carbon · Everyday performance.
View Carbon BlackStock Carbon Ceramic IR at your shop.
Installer pricing, sample rolls, and availability by width — one message to Quest One gets you all three.
